Significant Tornado Events - Global Edition

TH2002

Member
Sustaining Member
Messages
4,011
Reaction score
6,960
Location
California, United States
Special Affiliations
  1. SKYWARN® Volunteer
A little over a week ago I added a Mosin-Nagant to my gun collection. Mine was made in 1938 in Izhevsk, Russia (then part of the Soviet Union). But something is missing...

Oh, here we go:


A Guy

Member
Messages
256
Reaction score
591
Location
Australia
It appears to me that the Bureau of Meteorology is no longer cataloguing tornado reports in Australia, with no entries in the severe storms archive since 2019.


buckeye05

Member
Messages
3,411
Reaction score
5,414
Location
Colorado
It appears to me that the Bureau of Meteorology is no longer cataloguing tornado reports in Australia, with no entries in the severe storms archive since 2019.
That’s a real shame. I noticed they no longer seem interested in rating them either. Why??


A Guy

Member
Messages
256
Reaction score
591
Location
Australia
That’s a real shame. I noticed they no longer seem interested in rating them either. Why??
Dunno. They've never really solicited reports but I wouldn't have though collecting them would pose much budgetary strain. Inspecting and rating would take more, and maybe they just have different priorities.

The lack of surveying and rating is really problematic because there are quite significant events being missed, among them one near Bathurst a couple of years ago that was one of the best looking tornadoes I've ever seen here and news reports said tracked more than 20 km, and a possible one (might have been microbursts) that mowed down a huge number of trees on the Gold Coast last December. Studying these events would help better understand how they occur here, so it's a big miss.


buckeye05

Member
Messages
3,411
Reaction score
5,414
Location
Colorado
Dunno. They've never really solicited reports but I wouldn't have though collecting them would pose much budgetary strain. Inspecting and rating would take more, and maybe they just have different priorities.

The lack of surveying and rating is really problematic because there are quite significant events being missed, among them one near Bathurst a couple of years ago that was one of the best looking tornadoes I've ever seen here and news reports said tracked more than 20 km, and a possible one (might have been microbursts) that mowed down a huge number of trees on the Gold Coast last December. Studying these events would help better understand how they occur here, so it's a big miss.
I remember both of those! Based on the damage they left behind, I’d say they were strong/significant.

There was also the Armidale tornado, which produced some pretty significant house damage in town, and really impressive tree damage outside of town.

It’s just a real shame they aren’t being properly surveyed, documented, and rated.


A Guy

Member
Messages
256
Reaction score
591
Location
Australia
I remember both of those! Based on the damage they left behind, I’d say they were strong/significant.

There was also the Armidale tornado, which produced some pretty significant house damage in town, and really impressive tree damage outside of town.

It’s just a real shame they aren’t being properly surveyed, documented, and rated.
Well I wouldn't be surprised if the Armidale one would only rate as an F1 on damage.

I'd be careful with tree damage here. In my experience Eucalypts often topple easily. It'd take an expert to see if this is a real pattern and what the factors might be (tree and root structure. tree age, health and isolation, soil conditions and moisture etc). But I would be reticent to say the same patterns that apply in North America would necessarily apply here.


wdotornadoes

Member
Messages
8
Reaction score
31
Location
Germany
Last month, I surveyed a QLCS tornado in southern Germany. It tracked through two villages damaging homes and caused heavy tree damage, with, for example, trunks being considerably thrown.

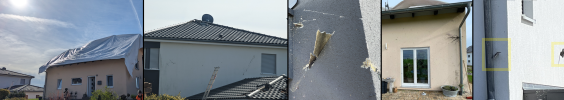

The tornado originated west of the small village Wackersberg with 67 residents. It went straight through the village, damaging every building within the narrow path (about half of all the buildings in the village). Roofs were damaged and considerable debris impacts were visible in the masonry of residential buildings, e.g. roof parts and tiles that were deeply embedded into walls.


Roof damage is surprisingly minimal for the most part, especially with the residential buildings, as the individual tiles are commonly screwed to the sturdy roof truss, which requires higher wind speeds to lift them. The high stability of roof structure in western Europe also became evident during the IF4 tornado in South Moravia, Czech Republic in 2021, where it was a common picture that the masonry of some (modern) homes was significantly damaged and penetrated by debris, while the roof and especially the roof truss were *relatively* intact (of course, many times more extreme than in this case here). Another reason could be the very fast forward movement of the tornado combined with the small diameter, resulting in a very short impact duration.

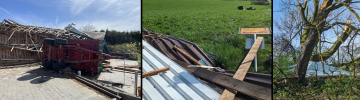

Despite the often minor roof damage, there is damage that indicates upper F1 (IF1.5) intensity in the village. For example, a barn that was destroyed, with parts of it being lifted over a hedge and carried for dozens of meters. Metal sheeting was thrown ~ 250 meters.

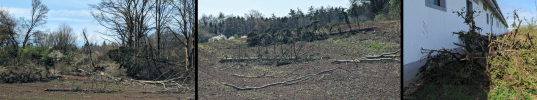

The tornado then continued snapping several trees east of the village. A steep, forested valley follows. Despite the steep gradient and rapid forward movement, the tornado did not lose contact to the ground and left a continuous path with uprooted/snapped trees and visibly convergent tree fall patterns. Some trees on the left-hand side of the path even fell in the completely opposite direction to the direction of movement. Something that, from what I have observed so far, is rather special in the case of very fast-moving, small-scale events.


In the village of Holnstein at the bottom of the valley, again roofs were slightly damaged, similar to the damage in Wackersberg. The tornado was captured by a CCTV camera here. The video shows the very small vortex (condensed part a maximum of 1-2 meters wide) moving at very high speed. With the footage, I was able to *roughly* calculate the movement speed. It shows the vortex tracking ~ 220 meters in ~ 7 seconds à ~ 31.5 m/s = ~ 113 km/h = ~ 70 mph. Don’t take this result too literally, as it is impossible to calculate perfectly by such footage alone.

Link to the footage:


The subsequent climb on the other side of the valley with a maximum gradient of ~ 50% was probably too much for the tornado. Here a clearly visible trace of the tornado is briefly lost. However, it should be said that the area could not be surveyed in more detail due to the gradient.

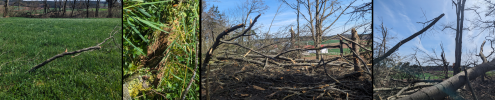

South of the village Stauferbuch there was some of the most impressive damage I have ever seen so far. When approaching a visible impacted row of trees, the first thing I noticed were medium-sized branches that stuck deep in the ground dozens of meters west of the tree row. These were therefore thrown in the opposite direction to the movement with visibly a lot of force. In a narrow area of the tree stand, all trees were snapped, uprooted, or at least significantly damaged. Some of which were over a hundred years old. The fall pattern was also extremely convergent.


What was even more remarkable was that the tornado transported tree trunks and many large branches from the tree stand onto the following field. One trunk seemed snapped more than one time. A treetop was transported about 150 meters to the east and then impacted a farm building on the east side, so it must have flown west again for a short time. Small branches were carried up to about 400 meters.


Immediately afterwards, the tornado apparently dissipated abruptly, as no more damage was found. A *possible* explanation for the massive intensity peak just before dissipating could have been the tightening of the ending rotation, as seen often on a larger scale with mesocyclones, whose rotation sometimes becomes tighter towards the end of their existence before disappearing.

The full survey can be found here: https://www.torkud.de/post/vholnstein24/


TornadoesUK

Member
Messages
8
Reaction score
14
Location
Nottingham

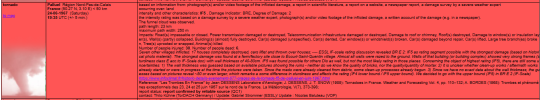

The European Severe Weather Database has added an IF5 damage indicator to their report for the 1967 Palluel, France IF5. It is listed as 'Damage Indicator: BRE, Degree of Damage: 2'. The strongest damage was at a farm/factory site that had almost all of its' walls razed to the ground. Walls of that building (or building complex) showed very strong frames (sturdiness class E acc.to IF-Scale doc) with wall thickness of 40-80cm. The wall thickness was based on ruins of the damage so there is some uncertainty with the rating. Palluel France F5.pngPalluel France DI.png


TH2002

Member
Sustaining Member
Messages
4,011
Reaction score
6,960
Location
California, United States
Special Affiliations
  1. SKYWARN® Volunteer
Large tornado in Mecklenburg, Germany from 2009. Could not find any damage photographs, but the ESWD rated it F2. The tornado passed directly through the villages of Plate and Sukow, and grazed the northern sides of Göhren and Ruthenbeck along its 16 km path. Over 60 buildings were damaged, with at least 3.5 million euros in losses.



TH2002

Member
Sustaining Member
Messages
4,011
Reaction score
6,960
Location
California, United States
Special Affiliations
  1. SKYWARN® Volunteer
The European Severe Weather Database has added an IF5 damage indicator to their report for the 1967 Palluel, France IF5. It is listed as 'Damage Indicator: BRE, Degree of Damage: 2'. The strongest damage was at a farm/factory site that had almost all of its' walls razed to the ground. Walls of that building (or building complex) showed very strong frames (sturdiness class E acc.to IF-Scale doc) with wall thickness of 40-80cm. The wall thickness was based on ruins of the damage so there is some uncertainty with the rating. View attachment 27053View attachment 27057
I still don't think it should have been rated F5. F4 is appropriate though, and similar damage from the 1931 Lublin tornado was rated as such.


TH2002

Member
Sustaining Member
Messages
4,011
Reaction score
6,960
Location
California, United States
Special Affiliations
  1. SKYWARN® Volunteer
Does anyone have photos of the house that sustained the most intense damage in last year's Jersey, England IF3? It was apparently a well-built one-story home that had many of its walls collapsed and was left with its interior walls exposed. A nearby car was thrown 25 meters, and a large chunk of concrete from the home was thrown 35 meters into the second story of another home. It was in a more rural area just northeast of St. Clement, but apparently the homeowner didn't want photos taken. I swear I saw a photo that seemed to match that description last year though.
I believe this is the home:
1699289851432-png.21978


A Guy

Member
Messages
256
Reaction score
591
Location
Australia
Forgot to post at the time, but there was a tornado in Bunbury in WA a couple of weeks ago: that caused some damage:


Interestingly, this one wasn't 'mini'.


Maxis_s

Member
Messages
1,239
Reaction score
2,138
Location
Canada
Does anyone have pictures of the damage of the 1987 Edmonton tornado, preferably the F4/near-F5 damage done in Refinery Row?
